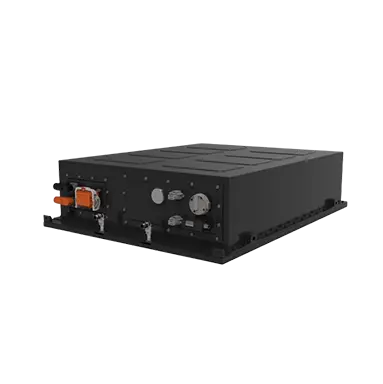

Suitable for 1h frequency regulation systems, emergency backup power supply system, and I-C energy storage applications.
Configuration | 1P56S | 1P80S | ||
Nominal Voltage | 179.2V | 256V | ||
Voltage Range | 156.8~201.6V | 224~288V | ||
Nominal Capacity | 200Ah | 314Ah | ||
Charging/Discharging Rate | 1P/1P | |||
Nominal Energy | 35.84kWh | 80.384kWh | ||
Dimension | L1020*W800*H245 | L2200*W830*H195 | ||
Weight | 265kg | 650kg | ||
Energy Density | 135Wh/kg | 124Wh/kg | ||
BMS | Triple-level manage system, CAN | |||
TMS | Liquid Cooling | |||
Temperature | Charging | 0~+50℃ | ||
Discharging | -20~+50℃ | |||
Protection Level | IP67 | |||
