Balance the power and capacity requirements to bring amazing user experiences.

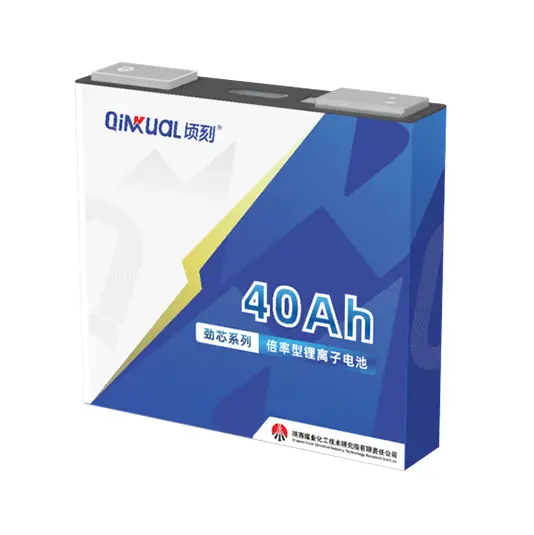

| Specification | QPF40CB |
| Rated Capacity | 40Ah@1C |
| Nominal Voltage | 3.2V |
| ACR | ≤0.7mΩ |
| Cell Weight | (1085±20)g |
| Operating Temperature | -20~60℃ |
| Maximum Continuous | 6C |
| Discharge Current | |
| Maximum Pulse Discharge Current @50%SoC | 10C@10s |
| Maximum Continuous Charge Current | 6C |
| Maximum Pulse Charge Current | 8C@10s |
| @50%SoC | |
| Energy Density | 118Wh/kg |
| Cycle Life | 4000 |
| Cycle Life @ | 2000@(6C/6C) |
| High Rate Working Condition | |
| (Charge/Discharge) | |
| Typical Dimension | 27*148*134mm |
<20℃ temperature rise in 5C continuous discharge
2000+ cycles in 6C/6C charge/discharge
Flexibly integrate in VDA size
No burning or explosion risk
