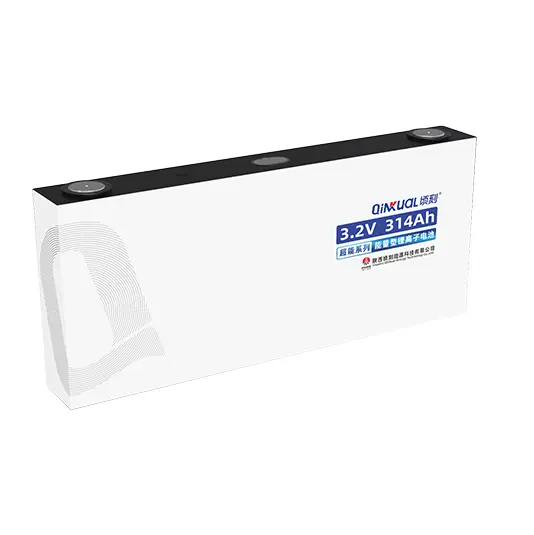

Industry pioneering high power energy storage cell with the capacity of 300+Ah
| Specification | QPF314CA |
| Rated Capacity | 314Ah@1P |
| Nominal Voltage | 3.2V |
| ACR | ≤0.2mΩ |
| Cell Weight | (6250±300)g |
| Operating Temperature | -20~60℃ |
| Maximum Continuous | 1P |
| Discharge Current | |
| Maximum Pulse Discharge Current | 1.5P |
| @50%SoC | |
| Maximum Continuous Charge Current | 1P |
| Maximum Pulse Charge Current | 1P |
| @50%SoC | |
| Cycle Life | 8000 @70% |
| Typical Dimension | 48*365*158mm |
1.5P high power discharge in 314Ah
Low temperature rise and low internal resistance
12000+ ultra-long cycles
Better heat dissipation performance by longer and thinner size design
No burning or explosion risk
