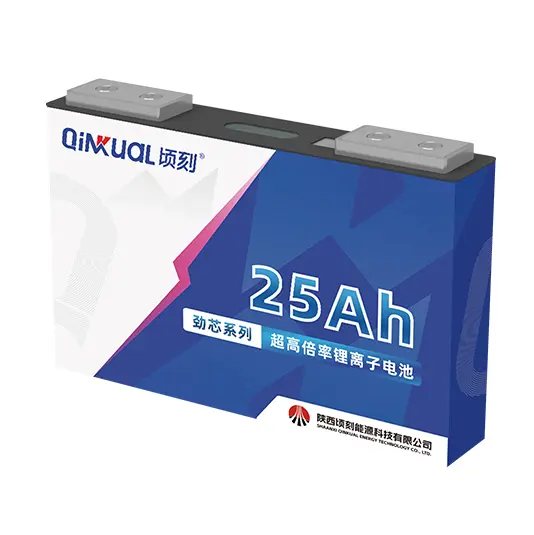

The 25Ah 8C/15C prismatic cell features a nominal voltage of 3.2V, high energy density of 110Wh/kg, and robust performance across extreme temperatures, ensuring safety and longevity with over 4000 cycles.
| Specification | QPF25GA |
| Rated Capacity | 25Ah@1C |
| Nominal Voltage | 3.2V |
| ACR | ≤1mΩ |
| Cell Weight | (720±20)g |
| Operating Temperature | -40~60℃ |
| Maximum Continuous | 15C |
| Discharge Current | |
| Maximum Pulse Discharge Current | 20C@10s |
| @50%SoC | |
| Maximum Continuous Charge Current | 8C |
| Maximum Pulse Charge Current | 10C@10s |
| @50%SoC | |
| Charging Features @ Low Temperature | / |
| Discharging Features | 2C-discharge@-40℃ |
| @ Low Temperature | |
| Energy Density | 110Wh/kg |
| Cycle Life | 4000 |
| Typical Dimension | 27*148*95mm |
80C ultra-high C-rate discharge
4600W single cell power
4000+ cycles in 5C high C-rate
No burning or explosion risk
