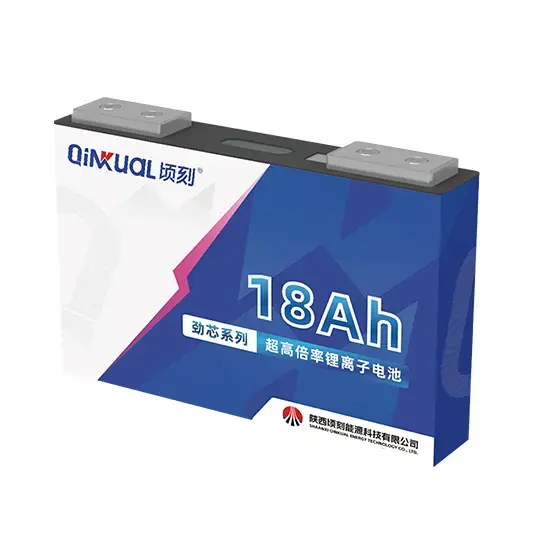

The 18Ah 80C/100C prismatic cell delivers high power and energy density, ideal for demanding applications in electric vehicles and energy storage.
| Specification | QPF18GA |
| Rated Capacity | 18Ah@1C |
| Nominal Voltage | 3.2V |
| ACR | ≤0.5mΩ |
| Cell Weight | (715±20)g |
| Operating Temperature | -20~60℃ |
| Maximum Continuous | 80C |
| Discharge Current | |
| Maximum Pulse Discharge Current | 100C@2s |
| @50%SoC | |
| Maximum Continuous Charge Current | 10C |
| Maximum Pulse Charge Current | 12C@10s |
| @50%SoC | |
| Charging Features @ Low Temperature | / |
| Discharging Features | 1C-discharge@-20℃ |
| @ Low Temperature | |
| Energy Density | 80Wh/kg |
| Cycle Life | 2000 |
| Typical Dimension | 27*148*95mm |
80C ultra-high C-rate discharge
4600W single cell power
4000+ cycles in 5C high C-rate
No burning or explosion risk
