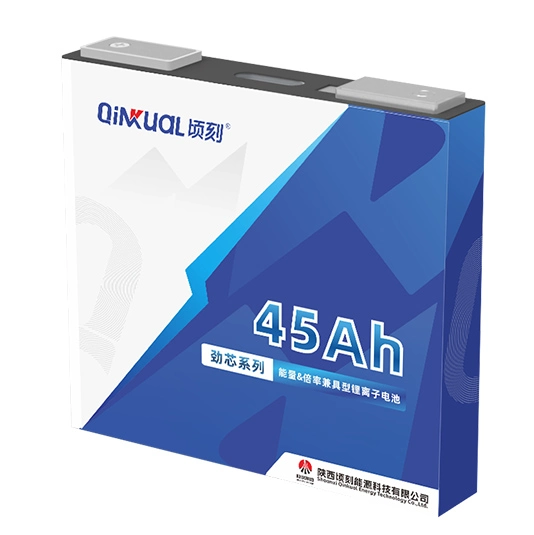

Experience our 45Ah 3C/5C prismatic cell: efficient, safe, with over 2000 cycles, minimal temperature rise, and flexible integration options.
| Specification | QPF45CB |
| Rated Capacity | 45Ah@1C |
| Nominal Voltage | 3.2V |
| ACR | ≤0.4mΩ |
| Cell Weight | (1030±20)g |
| Operating Temperature | -20~60℃ |
| Maximum Continuous | 5C |
| Discharge Current | |
| Maximum Pulse Discharge Current @50%SoC | 8C@30s |
| Maximum Continuous Charge Current | 3C |
| Maximum Pulse Charge Current | 5C@30s |
| @50%SoC | |
| Energy Density | 140Wh/kg |
| Cycle Life | 4000 |
| Cycle Life @ | / |
| High Rate Working Condition | |
| (Charge/Discharge) | |
| Typical Dimension | 27*148*127mm |
<20℃ temperature rise in 5C continuous discharge
2000+ cycles in 6C/6C charge/discharge
Flexibly integrate in VDA size
No burning or explosion risk
