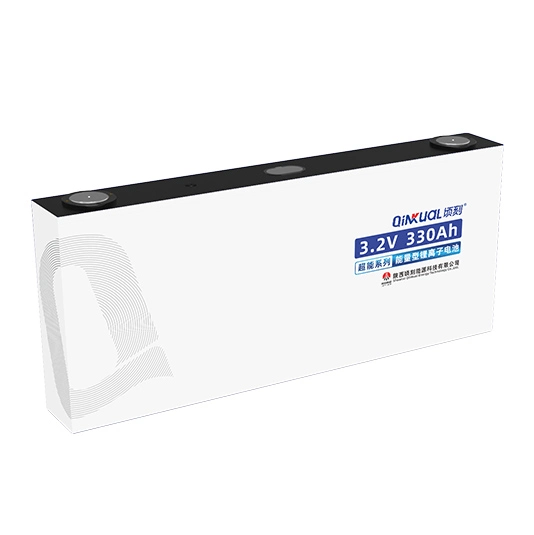

The 330Ah 0.5P/0.5P prismatic cell features 12000+ cycles, low temperature rise, excellent heat dissipation, and no burning or explosion risk.
| Specification | QPF330GA |
| Rated Capacity | 330Ah@0.5P |
| Nominal Voltage | 3.2V |
| ACR | ≤0.2mΩ |
| Cell Weight | (6300±300)g |
| Operating Temperature | -20~60℃ |
| Maximum Continuous | 0.5P |
| Discharge Current | |
| Maximum Pulse Discharge Current | 0.5P |
| @50%SoC | |
| Maximum Continuous Charge Current | 0.5P |
| Maximum Pulse Charge Current | 0.5P |
| @50%SoC | |
| Cycle Life | 12000 @70% |
| Typical Dimension | 48*365*158mm |

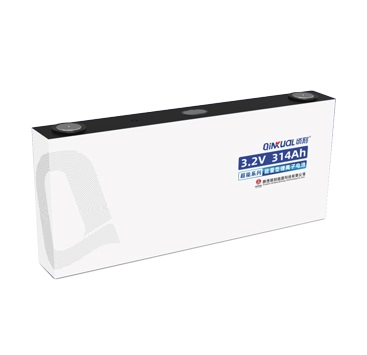

1.5P high power discharge in 314Ah
Low temperature rise and low internal resistance
12000+ ultra-long cycles
Better heat dissipation performance by longer and thinner size design
No burning or explosion risk
